Assembly
- Oct 27, 2016
- 1 min read

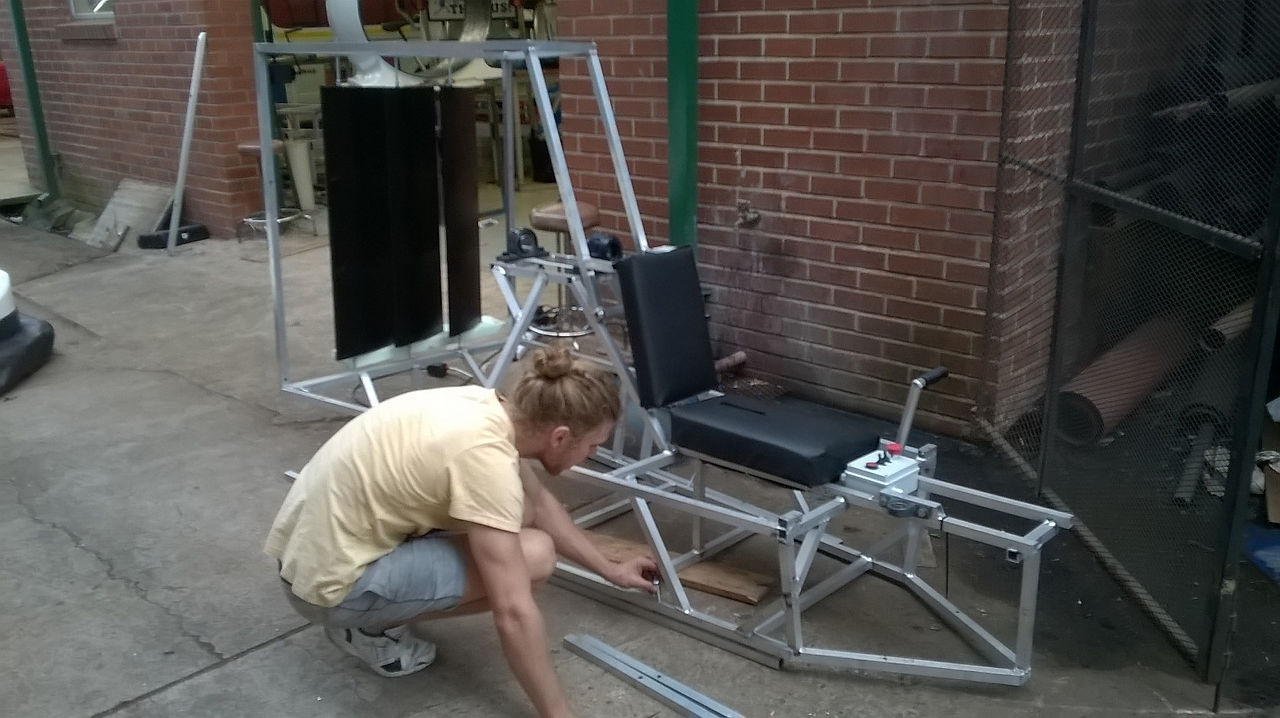

Many issues were encountered during the assembly phase. The frame would not drop down into the body completely and had to be modified. This offset the duct which needed to be moved further forward. The lift engine did not perfectly line with the shaft and the mountings had to be customised to fit. The front lift fan clearance was offset to the bottom and was touching the paint when rotated.
The wings had a tough time fitting. The frame was offset to the front slightly relative to holes in the body. Modifications were made to the frame, connecting billet and shackles to make them fit.
WP_20161025_016 WP_20161025_008 WP_20161025_009 WP_20161026_002 WP_20161026_003 WP_20161026_007 WP_20161026_006 WP_20161026_010 WP_20161026_012 WP_20161027_001 WP_20161027_002 WP_20161027_004 WP_20161027_006 WP_20161027_007 WP_20161027_009 WP_20161027_010 WP_20161027_011 WP_20161027_015 WP_20161027_019
